2位3通球閥

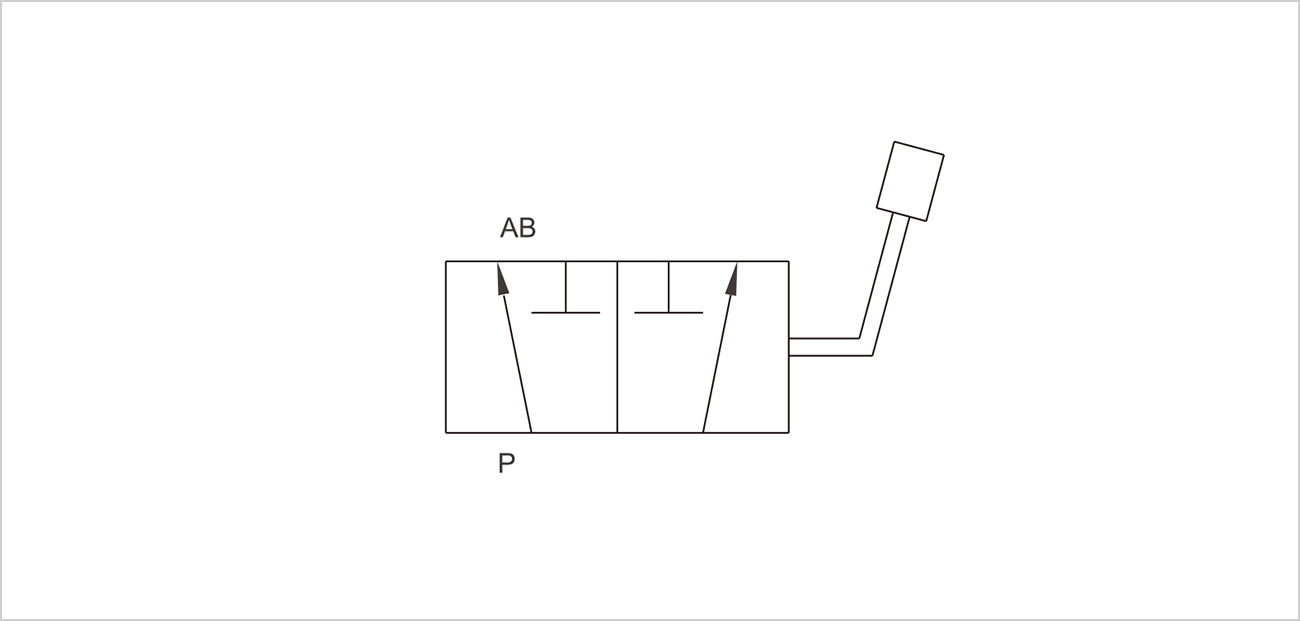

該閥可將進口流量分流至2個可選油口。
運用：
將油口P連接至壓力油口，油口A和B連接至需要分流的回路中。
把手位置與閥體呈90°角時，A回路接通；把手位置與閥體在同一直線時，B回路接通。

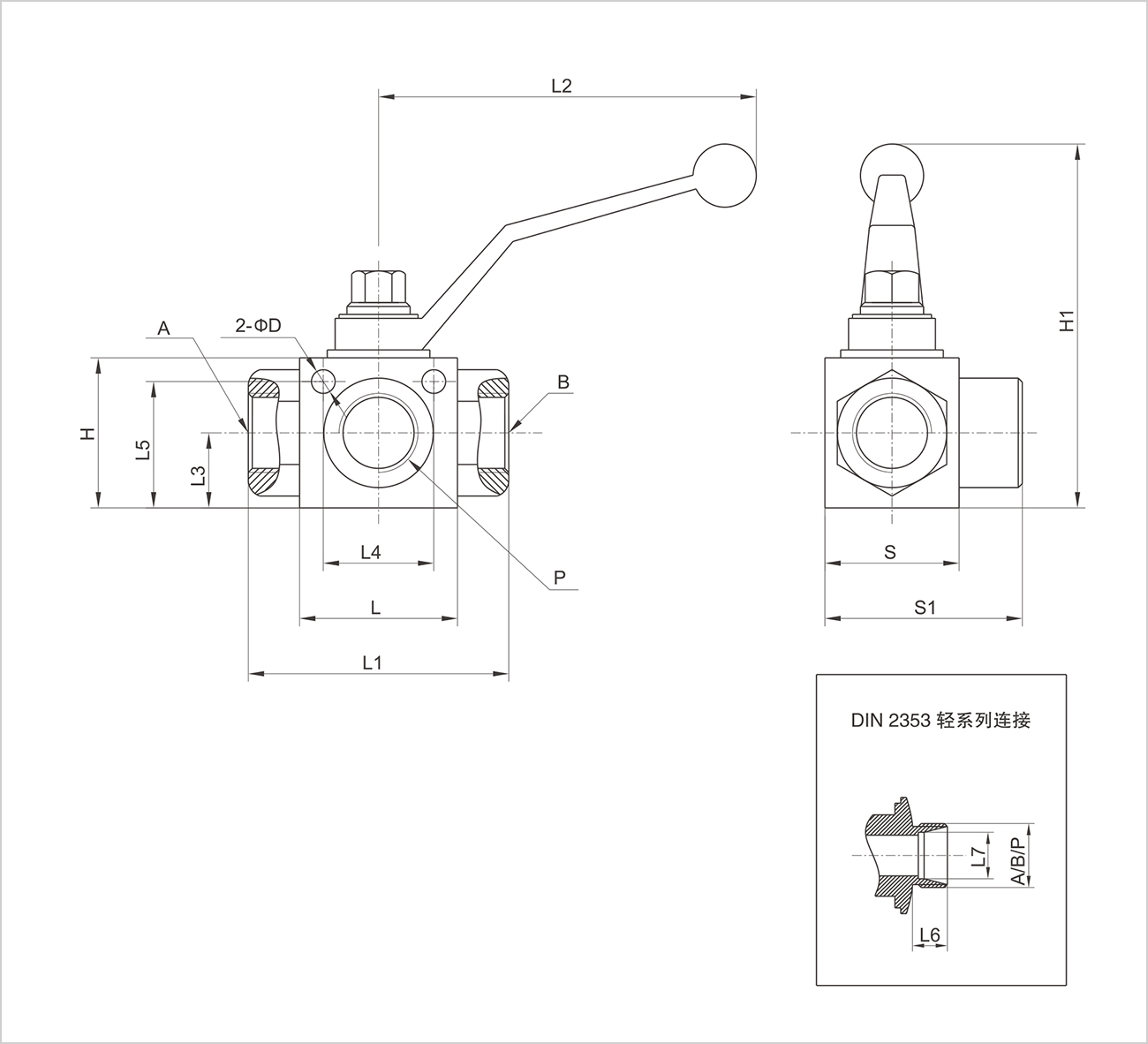

DIN/ISO 228 BSP 公制內(nèi)螺紋
|
型號 |
MAX FLOW(L/min) |
PN |
DN |
A/P |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
D |
H |
H1 |
S |
S1 |
|
HYRS 3VIE 1/4” |
25 |
400 |
6 |
G 1/4” |
42 |
71 |
110 |
14 |
25 |
30 |
5.5 |
35 |
90 |
30 |
48.5 |
|
HYRS 3VIE 3/8” |
35 |
400 |
10 |
G3/8” |
44 |
73 |
110 |
17 |
31 |
35 |
5.5 |
40 |
95 |
35 |
54 |
|
HYRS 3VIE 1/2” |
60 |
350 |
13 |
G 1/2” |
48 |
83 |
110 |
18 |
34 |
37 |
6.5 |
43 |
98 |
37 |
58 |
|
HYRS 3VIE 3/4” |
100 |
350 |
20 |
G 3/4” |
63 |
95 |
180 |
23 |
46 |
49 |
8.5 |
55 |
105 |
45 |
75 |
|
HYRS 3VIE 1” |
180 |
350 |
25 |
G 1” |
67 |
112 |
180 |
29 |
49 |
59 |
8.5 |
65 |
115 |
55 |
87 |
|
HYRS 3VIE 1”1/4 |
180 |
350 |
25 |
G 1”1/4 |
67 |
120 |
180 |
29 |
49 |
59 |
8.5 |
65 |
115 |
55 |
89 |
|
HYRS 3VIE 1”1/2 |
180 |
350 |
25 |
G 1”1/2 |
67 |
124 |
180 |
29 |
49 |
59 |
8.5 |
65 |
115 |
55 |
89 |
|
型號 |
MAX FLOW(L/min) |
PN |
DN |
A/P |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
D |
H |
H1 |
S |
S |
|
HYRS 3VIE M12x1.5 |
25 |
400 |
6 |
M12x1.5 |
42 |
76 |
110 |
14 |
25 |
30 |
10 |
6 |
5.5 |
35 |
92 |
30 |
48.5 |
|
HYRS 3VIE M14x1.5 |
25 |
400 |
6 |
M14x1.5 |
42 |
76 |
110 |
14 |
25 |
30 |
10 |
8 |
5.5 |
35 |
92 |
30 |
54 |
|
HYRS 3VIE M16x1.5 |
25 |
400 |
6 |
M16x1.5 |
42 |
76 |
110 |
14 |
25 |
30 |
11 |
10 |
5.5 |
35 |
92 |
30 |
53.5 |
|
HYRS 3VIE M16x1.5 |
35 |
400 |
10 |
M16x1.5 |
44 |
76 |
110 |
17 |
31 |
35 |
11 |
10 |
5.5 |
40 |
97 |
35 |
58.5 |
|
HYRS 3VIE M18x1.5 |
35 |
400 |
10 |
M18x1.5 |
44 |
76 |
110 |
17 |
31 |
35 |
11 |
12 |
5.5 |
40 |
97 |
35 |
58.5 |
|
HYRS 3VIE M22x1.5 |
60 |
350 |
13 |
M22x1.5 |
48 |
79 |
110 |
18 |
34 |
37 |
12 |
15 |
6.5 |
43 |
100 |
37 |
62.5 |
|
HYRS 3VIE M26x1.5 |
60 |
350 |
13 |
M26x1.5 |
48 |
87 |
110 |
18 |
34 |
37 |
12 |
18 |
6.5 |
43 |
100 |
37 |
62.5 |
|
HYRS 3VIE M30x2 |
100 |
350 |
20 |
M30x2 |
62 |
110 |
180 |
23 |
46 |
49 |
14 |
22 |
8.5 |
55 |
110 |
45 |
79.5 |
|
HYRS 3VIE M36x2 |
180 |
350 |
25 |
M36x2 |
67 |
115 |
180 |
29 |
49 |
59 |
14 |
28 |
8.5 |
65 |
120 |
55 |
91.5 |
|
HYRS 3VIE M45x2 |
180 |
350 |
25 |
M45x2 |
67 |
119 |
180 |
29 |
49 |
59 |
16 |
35 |
8.5 |
65 |
120 |
55 |
93.5 |
|
HYRS 3VIE M52x2 |
180 |
350 |
25 |
M52x2 |
67 |
120 |
180 |
29 |
49 |
59 |
16 |
42 |
8.5 |
65 |
120 |
55 |
96.5 |
