標準油路塊 D07P
PDF樣本下載
|
串聯數量 |
*01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
|

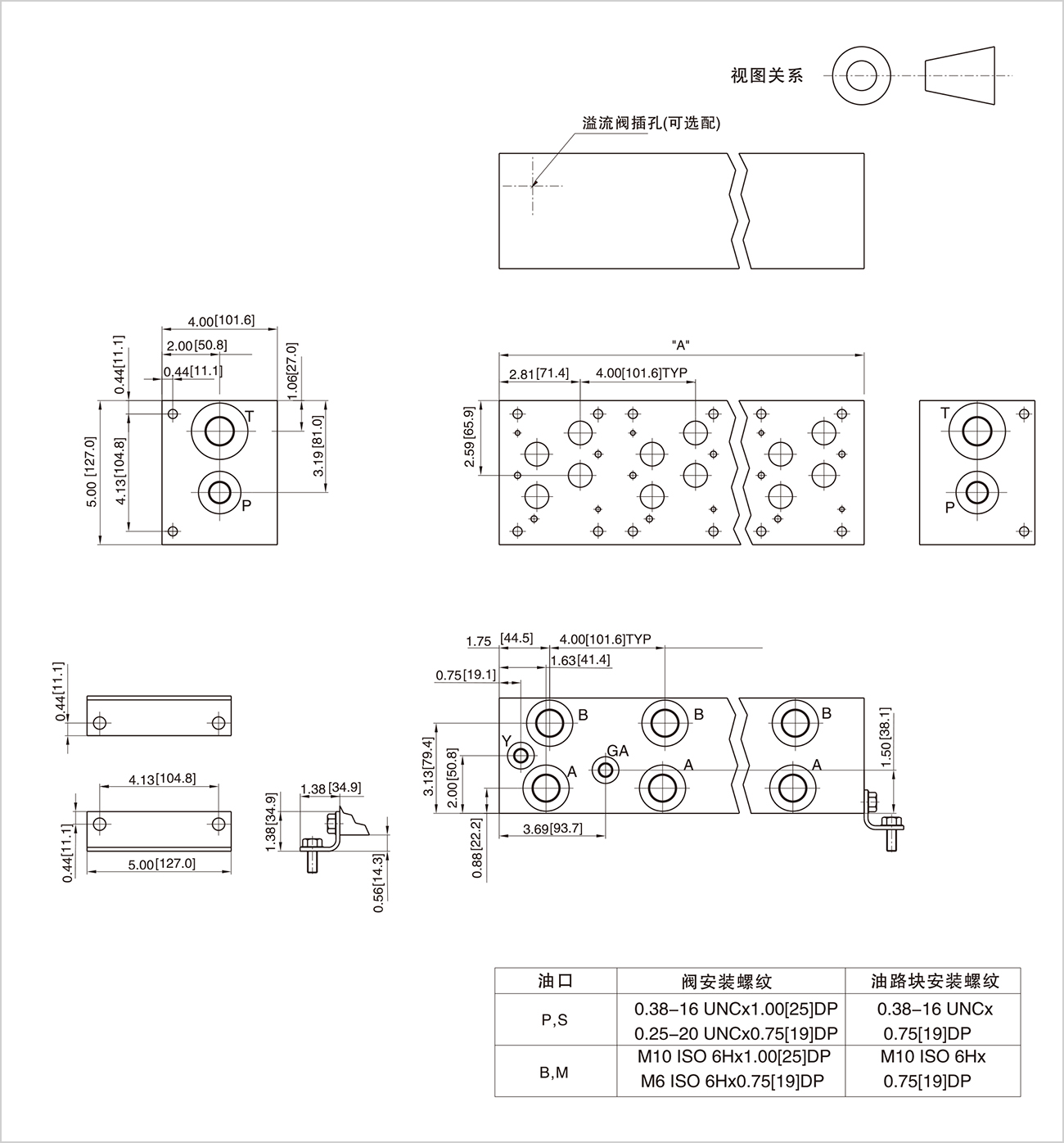

長度”A”英寸 [毫米] |
4.00 |
8.00 |
12.00 |
16.00 |
20.00 |
24.00 |
28.00 |
32.00 |
|
[101.6] |
[203.3] |
[304.8] |
[406.4] |
[508.0] |
[609.6] |
[711.2] |
[812.8] |
|
|
鋁材重量磅[kg] |
6 |
14 |
22 |
30 |
38 |
46 |
52 |
60 |
|
[3] |
[6] |
[10] |
[14] |
[17] |
[21] |
[24] |
[27] |
|
|
鋼材重量磅[kg] |
24 |
46 |
69 |
90 |
114 |
135 |
158 |
180 |
|
[11] |
[21] |
[31] |
[41] |
[52] |
[61] |
[72] |
[82] |
* 1聯帶壓力插裝閥的油路塊長度為5.5[139.7].1聯油路塊不帶壓力表接口
