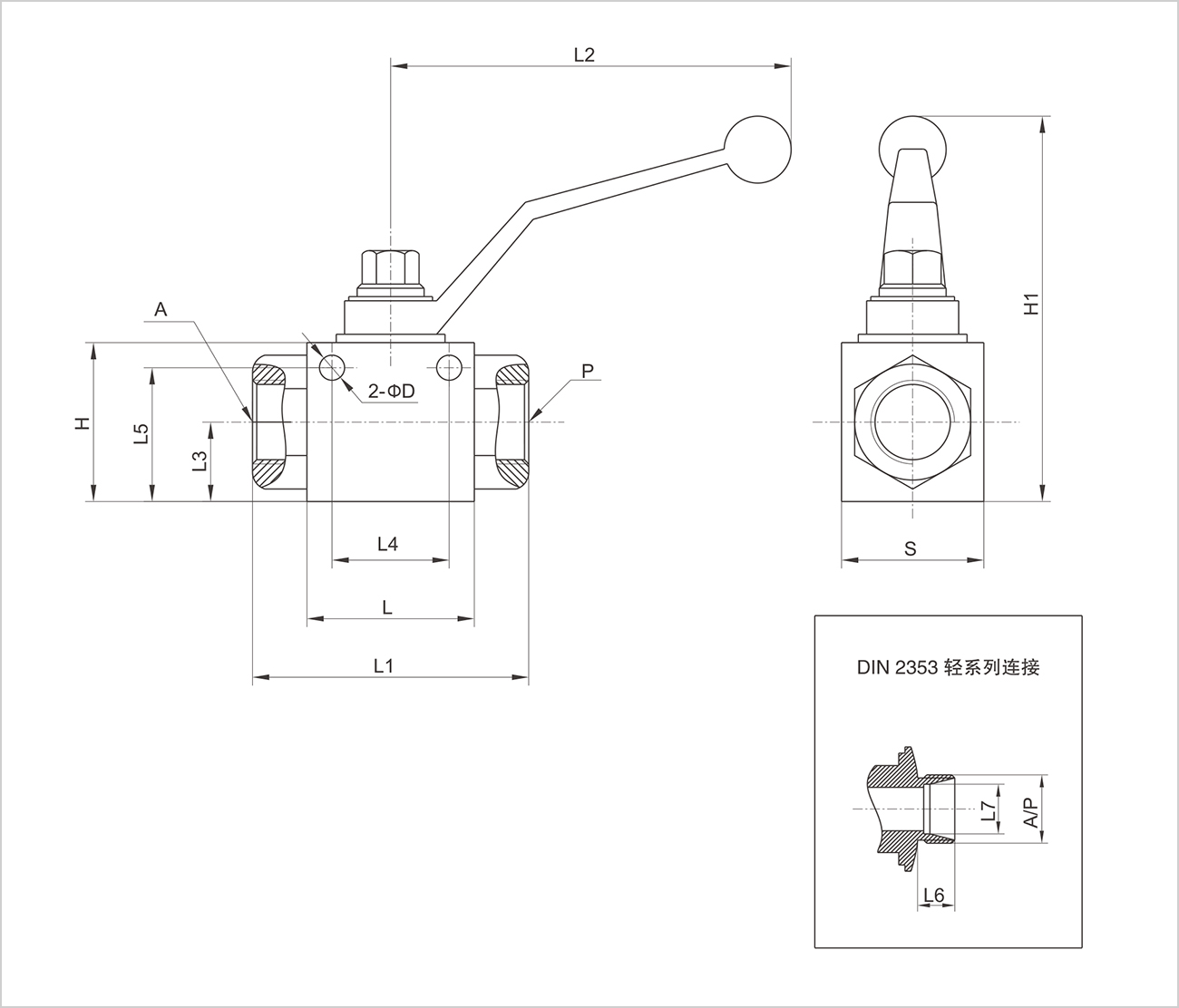

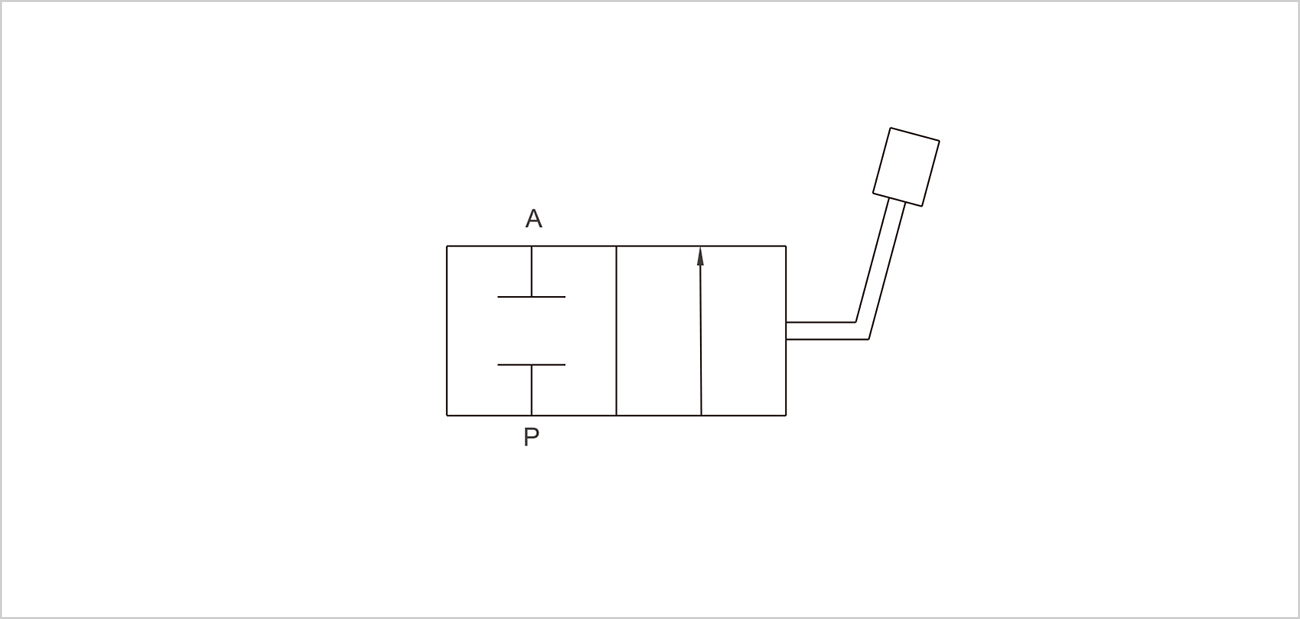

2位2通球閥
該閥用于高壓油路的通斷回路。
運用：
把油口A或P連接至需要斷開的液壓回路中。
當把手位置與閥體呈90°角時，油路斷開；把手位置與閥體在同一直線時，油路聯(lián)通。
DIN/ISO 228 BSP 公制內螺紋
|
型號 |
MAX FLOW(L/min) |
PN |
DN |
A/P |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
D |
H |
H1 |
S |
|
HYRS 2VIE 1/4” |
25 |
500 |
6 |
G 1/4” |
42 |
71 |
110 |
14 |
25 |
30 |
5.5 |
35 |
92 |
30 |
|
HYRS 2VIE 3/8” |
35 |
500 |
10 |
G3/8” |
44 |
73 |
110 |
17 |
31 |
35 |
5.5 |
40 |
97 |
35 |
|
HYRS 2VIE 1/2” |
60 |
500 |
13 |
G 1/2” |
48 |
83 |
110 |
18 |
34 |
37 |
6.5 |
43 |
100 |
37 |
|
HYRS 2VIE 3/4” |
100 |
400 |
20 |
G 3/4” |
63 |
95 |
180 |
23 |
46 |
49 |
8.5 |
55 |
110 |
45 |
|
HYRS 2VIE 1” |
180 |
350 |
25 |
G 1” |
67 |
112 |
180 |
29 |
49 |
59 |
8.5 |
65 |
120 |
55 |
|
HYRS 2VIE 1”1/4 |
180 |
350 |
25 |
G 1”1/4 |
67 |
120 |
180 |
29 |
49 |
59 |
8.5 |
65 |
120 |
55 |
|
HYRS 2VIE 1”1/2 |
180 |
350 |
25 |
G 1”1/2 |
67 |
124 |
180 |
29 |
49 |
59 |
8.5 |
65 |
120 |
55 |
DIN 2353 輕系列公制螺紋
|
型號 |
MAX FLOW(L/min) |
PN |
DN |
A/P |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
D |
H |
H1 |
S |
|
HYRS 2VIE M12x1.5 |
25 |
500 |
6 |
M12x1.5 |
42 |
76 |
110 |
14 |
25 |
30 |
10 |
6 |
5.5 |
35 |
92 |
30 |
|
HYRS 2VIE M14x1.5 |
25 |
500 |
6 |
M14x1.5 |
42 |
76 |
110 |
14 |
25 |
30 |
10 |
8 |
5.5 |
35 |
92 |
30 |
|
HYRS 2VIE M16x1.5 |
25 |
500 |
6 |
M16x1.5 |
42 |
76 |
110 |
14 |
25 |
30 |
11 |
10 |
5.5 |
35 |
92 |
30 |
|
HYRS 2VIE M16x1.5 |
35 |
500 |
10 |
M16x1.5 |
44 |
76 |
110 |
17 |
31 |
35 |
11 |
10 |
5.5 |
40 |
97 |
35 |
|
HYRS 2VIE M18x1.5 |
35 |
500 |
10 |
M18x1.5 |
44 |
79 |
110 |
17 |
31 |
35 |
11 |
12 |
5.5 |
40 |
97 |
35 |
|
HYRS 2VIE M22x1.5 |
60 |
500 |
13 |
M22x1.5 |
48 |
87 |
110 |
18 |
34 |
37 |
12 |
15 |
6.5 |
43 |
100 |
37 |
|
HYRS 2VIE M26x1.5 |
60 |
500 |
13 |
M26x1.5 |
48 |
87 |
110 |
18 |
34 |
37 |
12 |
18 |
6.5 |
43 |
100 |
37 |
|
HYRS 2VIE M30x2 |
100 |
400 |
20 |
M30x2 |
63 |
110 |
180 |
23 |
46 |
49 |
14 |
22 |
8.5 |
55 |
110 |
45 |
|
HYRS 2VIE M36x2 |
180 |
350 |
25 |
M36x2 |
67 |
115 |
180 |
29 |
49 |
59 |
14 |
28 |
8.5 |
65 |
120 |
55 |
|
HYRS 2VIE M45x2 |
180 |
350 |
25 |
M45x2 |
67 |
119 |
180 |
29 |
49 |
59 |
16 |
35 |
8.5 |
65 |
120 |
55 |
|
HYRS 2VIE M52x2 |
180 |
350 |
25 |
M52x2 |
67 |
120 |
180 |
29 |
49 |
59 |
16 |
42 |
8.5 |
65 |
120 |
55 |
