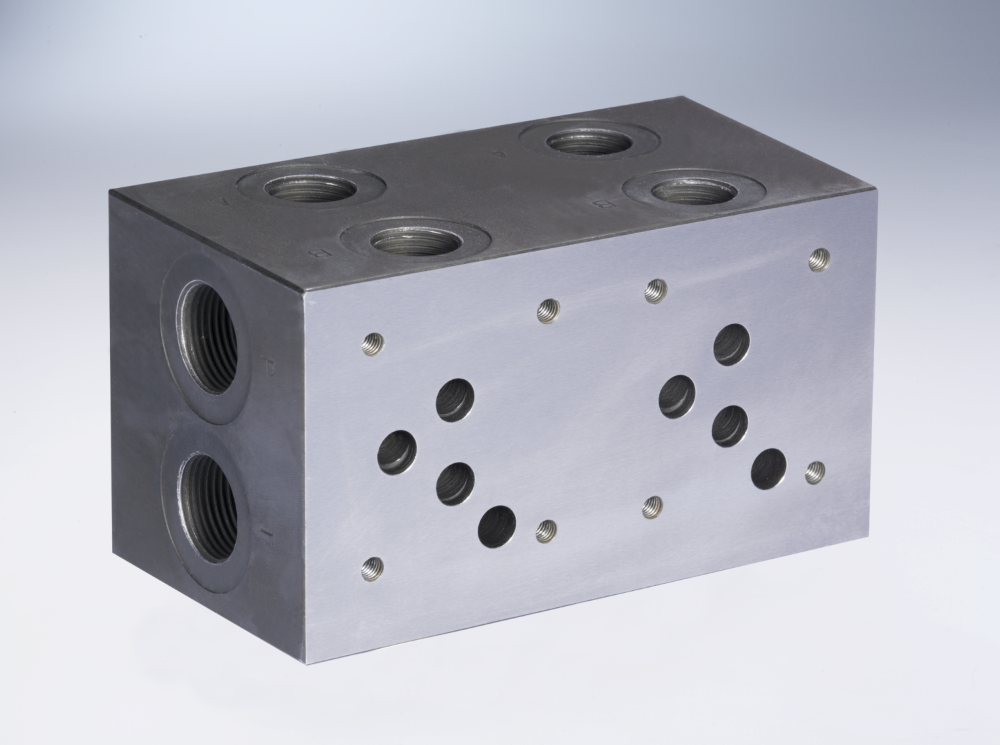

標準油路塊 D05P
PDF樣本下載
|
關聯數量 |
*01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
11 |
|

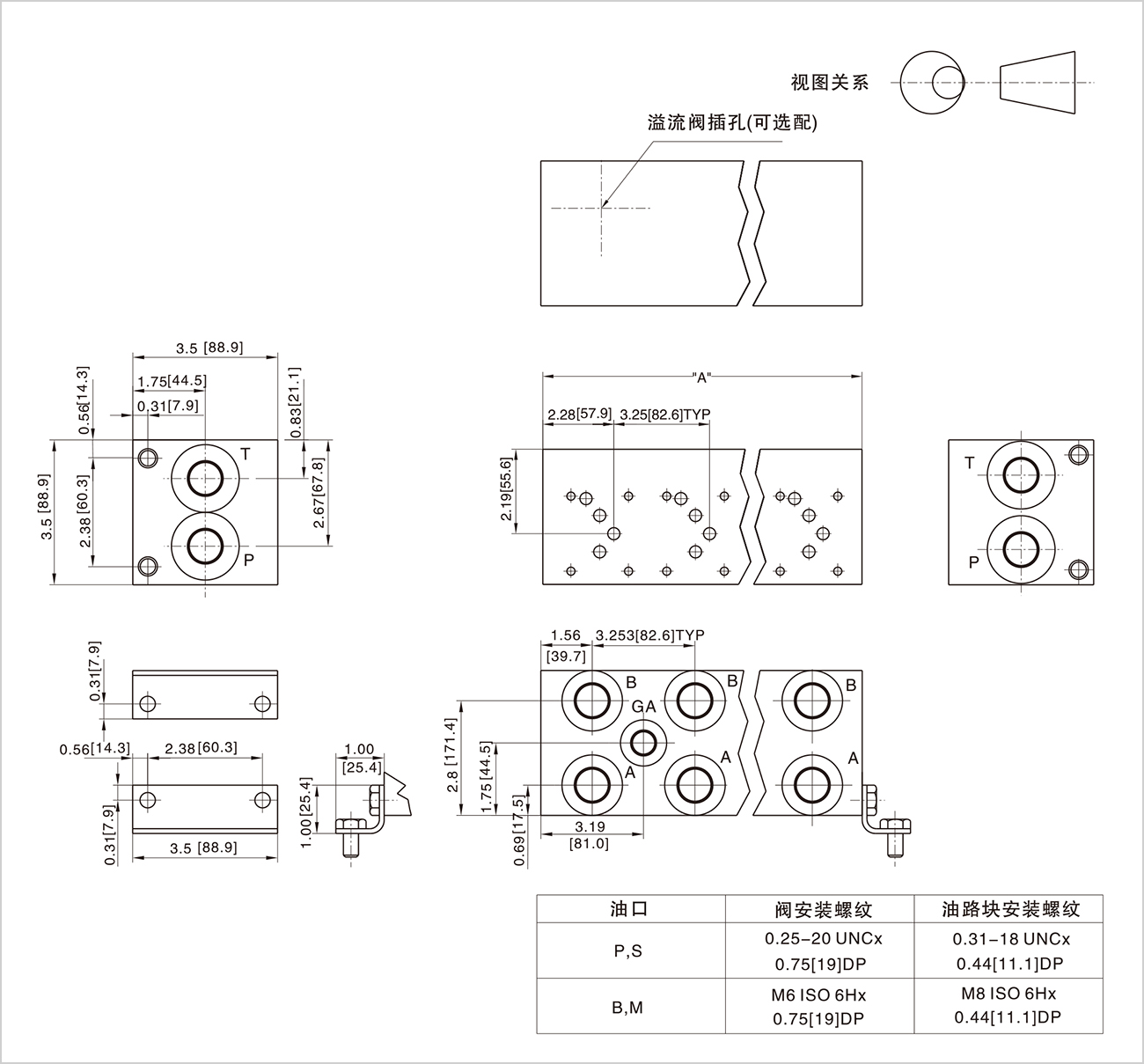

長度”A”英寸 [毫米] |
3.25 |
6.50 |
9.75 |
13.00 |
16.25 |
19.50 |
22.75 |
26.00 |
29.25 |
32.50 |
35.75 |
|
[82.6] |
[165.1] |
[247.7] |
[330.2] |
[412.8] |
[495.3] |
[577.9] |
[660.4] |
[743.0] |
[825.5] |
[908.1] |
|
|
鋁材重量磅[kg] |
4 |
8 |
11 |
14 |
17 |
21 |
24 |
27 |
30 |
34 |
37 |
|
[2] |
[4] |
[5] |
[7] |
[8] |
[10] |
[11] |
[12] |
[14] |
[15] |
[17] |
|
|
鋼材重量磅[kg] |
9 |
17 |
26 |
34 |
43 |
51 |
60 |
68 |
77 |
85 |
94 |
|
[4] |
[8] |
[12] |
[15] |
[20] |
[23] |
[274] |
[31] |
[35] |
[39] |
[43] |
|
關聯數量 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
|
|
長度”A”英寸 [毫米] |
39.00 |
42.25 |
45.50 |
48.75 |
52.00 |
55.25 |
58.50 |
61.75 |
65.00 |
68.25 |
|
|
[990.6] |
[1073.2] |
[1155.7] |
[1238.3] |
[1320.8] |
[1403.4] |
[1485.9] |
[1568.5] |
[1651.0] |
[1733.6] |
|
|
|
鋁材重量磅[kg] |
41 |
44 |
47 |
51 |
55 |
58 |
61 |
64 |
67 |
71 |
|
|
[19] |
[20] |
[21] |
[23] |
[25] |
[26] |
[28] |
[29] |
[30] |
[32] |
|
|
|
鋼材重量磅[kg] |
102 |
-- |
-- |
- |
-- |
-- |
-- |
-- |
-- |
-- |
|
|
[46] |
-- |
- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
|
*1聯帶壓力插裝閥的油路塊長度為3[76.2].1聯油路塊不帶壓力表接口
