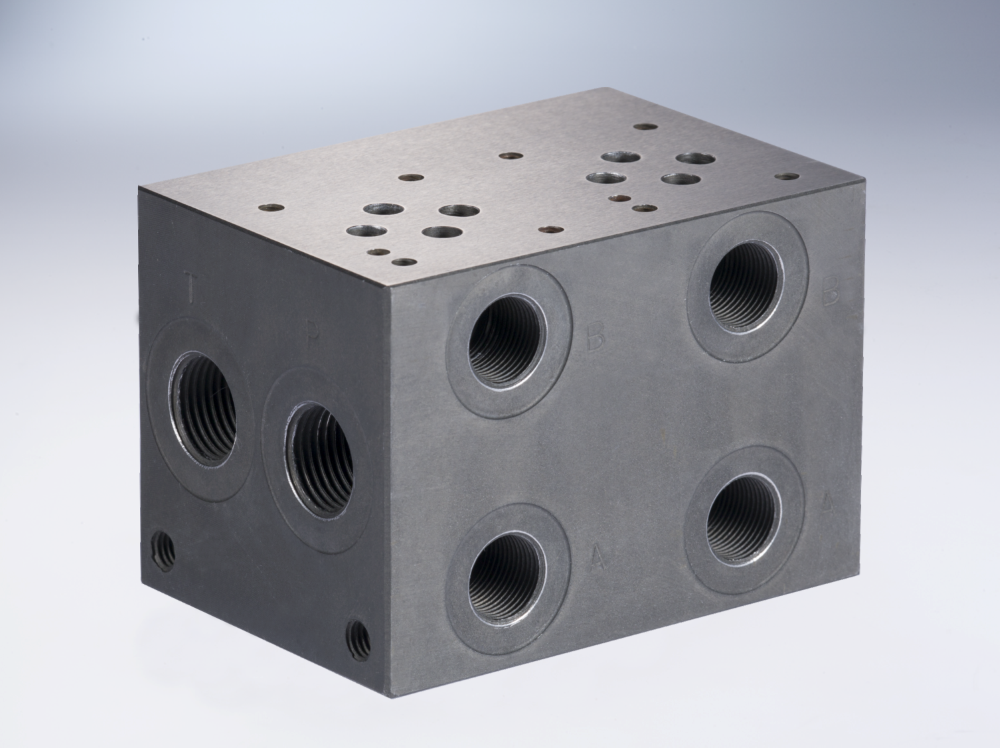

標準油路塊 D03P

關聯(lián)數(shù)量

*01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

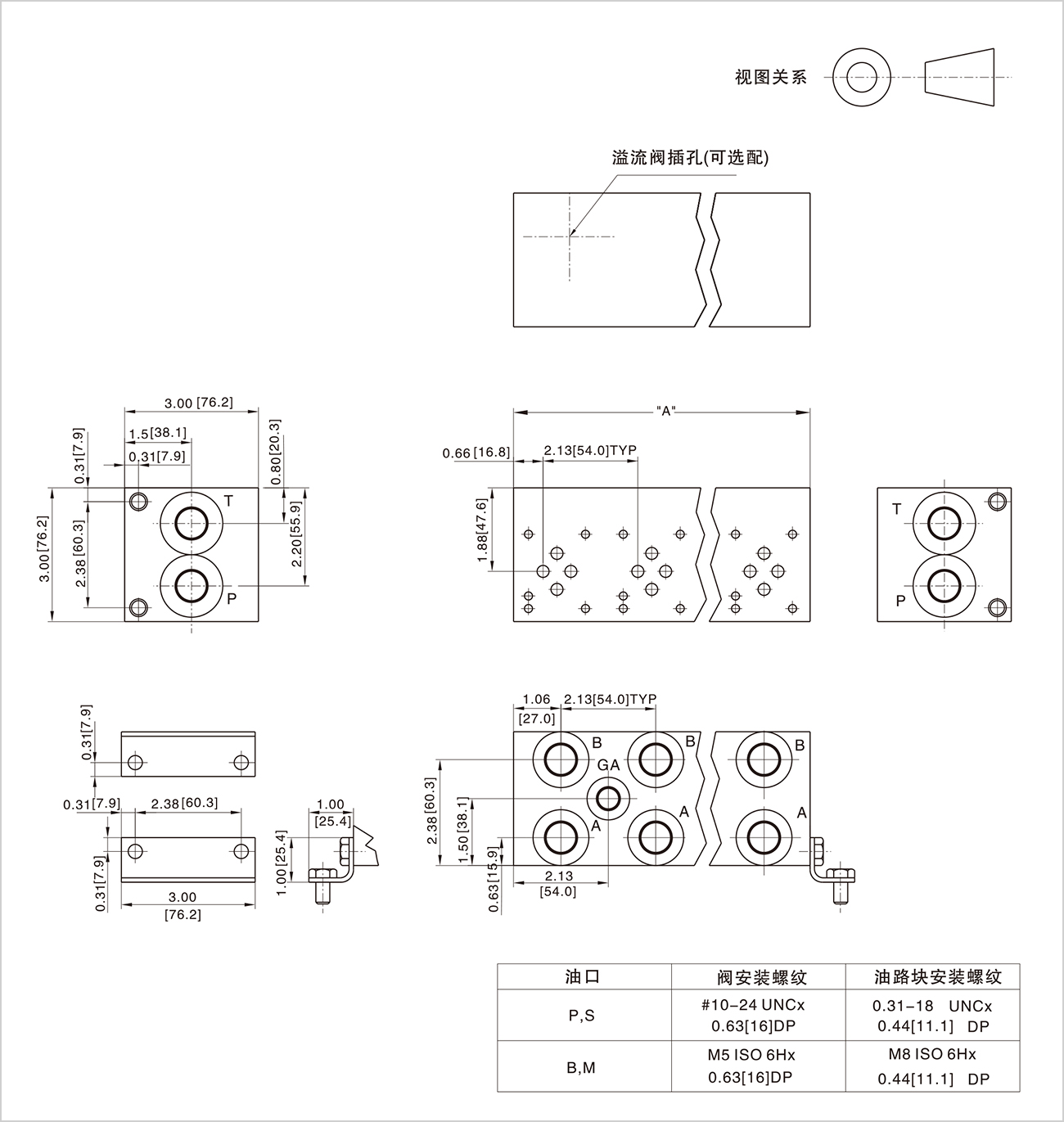

長度”A”英寸 [毫米]

2.13

4.25

6.38

8.50

10.63

12.75

14.88

17.00

19.13

21.25

23.38

25.5

27.63

29.75

31.88

34.00

[54.0]

[108.0]

[162.1]

[215.9]

[270.0]

[323.9]

[378.0]

[431.8]

[485.9]

[539.8]

[593.9]

[647.7]

[701.8]

[755.7]

[809.8]

[853.6]

鋁材重量磅[kg]

3

4

6

8

9

11

12

14

16

18

20

21

22

24

26

27

[1]

[2]

[3]

[4]

[4]

[5]

[5]

[6]

[7]

[8]

[9]

[10]

[10]

[11]

[12]

[12]

鋼材重量磅[kg]

5

9

13

17

21

26

30

34

38

42

47

51

55

59

63

68

[2]

[4]

[6]

[8]

[10]

[12]

[14]

[15]

[17]

[19]

[21]

[23]

[25]

[27]

[29]

[31]
